Productnummer:
BJP 8110703110
Specificaties:
Boring: 88 mm
Slag: 69 mm
Carter Ø: 90 mm
Cilinderkop Ø: 94 mm
Zuigerpen Ø: 22 mm

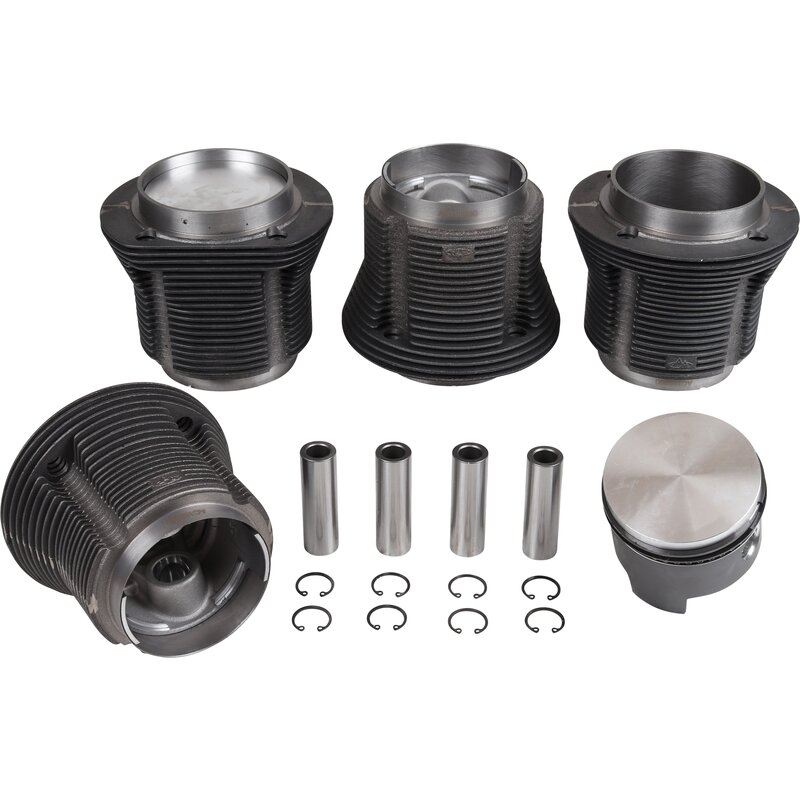

This is a bolt on set with thin wall cylinders and is therefore not recommended for high compression or turbo installations and is more suited to lighter VWs such as sand rails, buggies and beetles rather than buses. The set is designed to bolt onto a standard 1300-1600cc Type-1 engine case with the standard 69mm crankshaft. Installing this set will increase displacement to 1679cc without the need to machine either the crankcase or standard 1600cc cylinder heads; it is a direct bolt-on upgrade.
Bekende artikelnummers: | 1715 |
---|---|
English description: | Big-bore piston/cylinder kit 1679 cc. Type 1/Type 3/CT/CZ bore 88mm stroke 69mm. case 90mm heads 94mm |
Geschikt voor: | Big-bore cilinder/zuigerset 1679cc. Type 1 / Type 3 / CT/CZ boring 88mm slag 69mm. carter 90mm cylinderkoppen 94mm |
Belangrijke informatie: | Belangrijke veiligheidswaarschuwing (PDF download) |
